Gold Elite Vintage


SKU: GMEV Category: Tags: ,

1 in stock

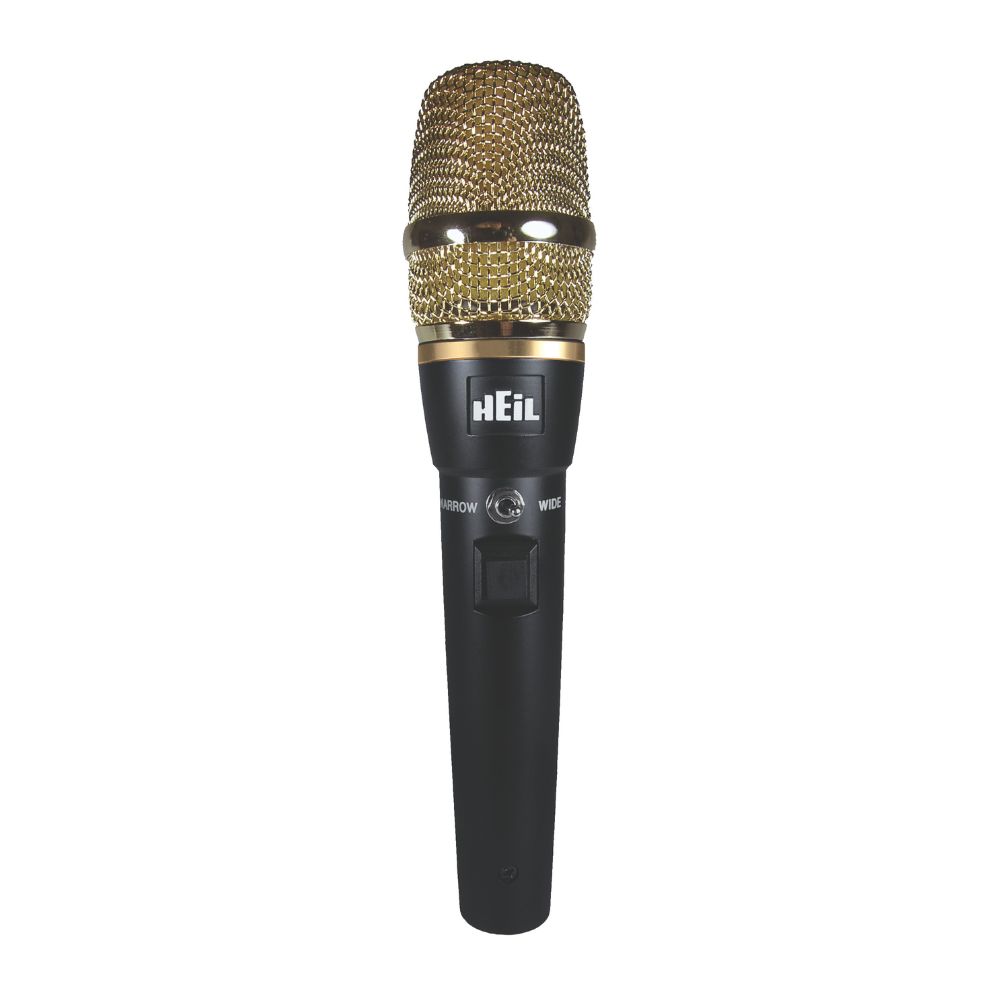

The Heil Gold Elite Vintage microphone is designed specifically to work with high-impedance vintage radios such as Collins, Drake, Central Electronics, Hallicrafters, etc. The Gold Elite Vintage is a unique, innovative microphone that delivers pristine and articulate full-range SSB audio quality.

The Gold Elite Vintage features a ‘soft touch’ PTT switch that is wired to pins 3 and 4 for transmit control, with microphone audio wired to pins 1 and 2 of the 4-pin XLR connector.

Note: The Gold Elite Vintage is not compatible with Icom radios.

The Gold Elite Vintage has an internal foam windscreen and includes a 5/8”-27 microphone clip that is designed for Heil booms and desk stands.

Please see our Product Compatibility Guide to determine whether the Gold Elite Vintage is compatible with your radio and which CC-1 connecting cable is required.

Download the spec sheet
Product: Gold Elite Vintage
Output Connection: 4-pin XLR
Frequency Response: 50 Hz – 16 kHz @ -55 dB
Diaphragm: Copper wound, mylar
Impedance: 30,000 ohm
Polar Pattern: Cardioid
Generating Element: dynamic, moving coil
Finish: Matte black
Net Weight: 14 oz

1 review for Gold Elite Vintage

  1. Van J Kaiser

    Beautiful, excellent, perfect, amazing audio quality on my vintage Kenwood TS-830S
